Specifications

*OS: Native and Java

*IC: 32Kb – 512Kb

*Network compatibility: GSM, CDMA 2000, USIM, ISIM, RUIM

*Browser: WIB, S@T, Celltick

*PUK,ICCID ,SID, ESN ,KI,PIN and PRL programable

*Security controller – Infinon, ST, Samsung and more

*Form Factor: ISO, half SIM, Quarter SIM, 10 chip, plug-in, 4FF

*Contact: 6 or 8 pin

*In-house apps development

*Compliant to IS-820 Addendum, GSM11.11, GSM11.14, GSM 03.48, GSM 03.40





Feature



*Size 85.5mm*54 mm ISO CR-80 Standard, Customized Available

*Thickness 0.76mm, Customized Available

*Form & Shape ISO CR-80 Card, Clamshell , Hang Tag , Key Fob Optional

Customized Available

*Artwork design Any Artwork Design (We Offer Free Artwork Design service)

Black White No Printing, Printing Method Offset printing, Silk-screen printing, UV printing, Gold/Silver Background, Glittering Effect ,Glossy/Matt/Frosted Finishing ,Others ,Customized Available.

Numbering Options Ink Jet Number, Thermal Transfer Number, Laser Number, Embossing Number

Embossing Number with Gold/Silver color, Gold/Silver Hot-Stamping





Application: mobile communication





Main character of chip

CPU

– 8 bit CPU or 16bit CPU Memory size: 16K,32K ,64K or 128K EEPROM
– single byte read ,write, and wipe
– multi bytes storage(1byte to1page)
– program clock come from vibrate clock that generated by chip itself
– At the normal temperature, can proceed at least 100,000 times erase and write operations.
– EEPROM data endurance more than ten years
– EEPROM program voltage generated in the chip Serial I/O interface

– Match ISO/IEC-7816
– asynchronous half duplex transmission protocol
– Two kinds of transmission velocity(372/1 and 512/8)optional Randomizer
-8- bit randomizer Power on reset
– internal power on reset mechanism



Low power work mode


– SLEEP mode
– CLOCK STOP mode Safety mechanism
– Abnormal voltage/frequency detection function, DPA/SPS attacking immunity Work temperature
– 25°C to +70°C Work voltage
– 2.7V to 3.3V,4.5V to 5.5V Work frequency
– 1 – 5 MHz (3.57MHz)

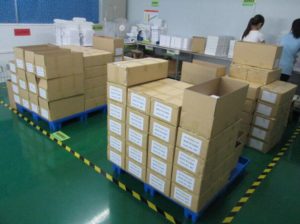

As a wireless communication equipment solution provider, HKCARD adopts international advanced chip design technology to provide operators with various smart card products and comprehensive solutions. As a long-term partner of China Mobile, China Unicom, China Telecom and other mobile internet companies, the company has established multiple SIM card production lines with an annual shipment of more than 200 million. Facing the ascendant mobile payment field, the company innovated its service model and relied on its technological advantages to incubate a variety of mobile payment products and services. Facing the M2M field, the company focused on security, healthcare, smart power supply, logistics systems, and vehicle services Carry out three-dimensional layout, and as an important direction for follow-up development.
